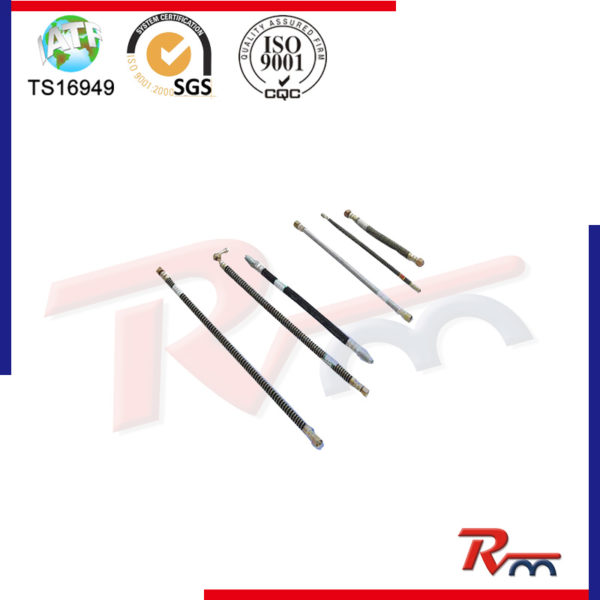

Air Brake Tubing for Truck & Trailer

RM NO.: RMQG308

Features:

1. Material: Nylon PA11

2. Temperature resistance: -40℃~120℃

3. High chemical and hydrolysis resistance, stable dimension, little penetration

4. Flexible, good wear resistance, anti-rustiness and anti-scaling

5. Black, yellow, red, white color is available.

Description

Product Description

Single layer
RM#	Wall size		Tensile strength (kgf/cm2)	Working pressure (Mpa)	Bursting pressure (Mpa)
RM#	O.D.	Thickness	Tensile strength (kgf/cm2)	Working pressure (Mpa)	Bursting pressure (Mpa)
RMQG008	8mm	1mm	43	2.6	5.7
RMQG010	10mm	1mm	62	2.7	4.5
RMQG012	12mm	1.5mm	101	3.2	5.7
RMQG014	14mm	1.5mm	125	2.2	5.6
RMQG015	15mm	1.5mm	140	2.0	5.4
RMQG016	16mm	2mm	190	2.8	5.4
RMQG018	18mm	1.5mm	210	2.3	3.6
RMQG023	23mm	2mm	260	2.1	3.3
RMQG516	5/16”	1mm	40	2.5	5.6
RMQG104	1/4”	1mm	38	2.7	5.3
RMQG308	3/8”	1.5mm	65	2.8	6.1
RMQG102	1/2”	1.5mm	110	3.0	5.5
RMQG508	5/8”	1.5mm	175	2.7	5.0
Dual layer
RM#	Wall size		Working pressure (Mpa)	Bursting pressure (Mpa)
RM#	O.D.	Thickness	Working pressure (Mpa)	Bursting pressure (Mpa)
RMQG308D	3/8″	2.8mm	3.8	7.0
RMQG102D	1/2”	3.1mm	3.5	6.5
RMQG508D	5/8”	3.5mm	3.2	6.0
