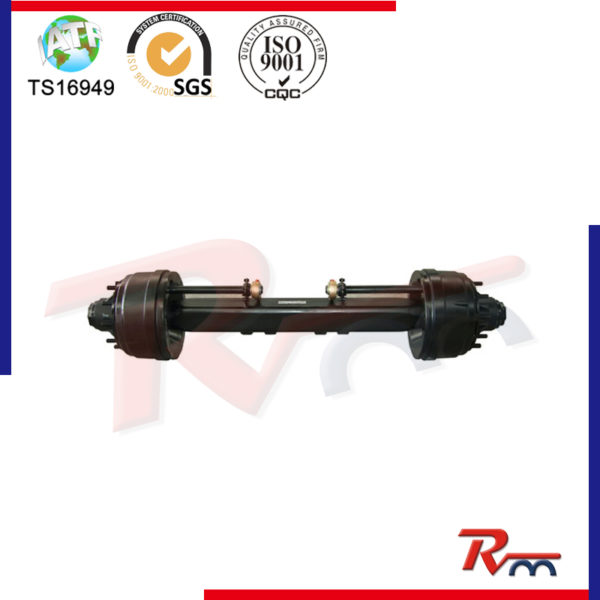

American Inboard Type Axle for Truck & Trailer

RM No.: HQ1304N, HQ1306N, HQ1601N

American Inboard Type

Description

Product Description

RM#	Max Capacity (Kg)	Total Length (L1)	Track Length (L2)	Brake chamber distance (L3)	Axle Tube	Brake	Wheel Fixing			Bearing	Recommended Wheel
RM#	Max Capacity (Kg)	Total Length (L1)	Track Length (L2)	Brake chamber distance (L3)	Axle Tube	Brake	Stud	P.C.D	H	Bearing	Recommended Wheel
HQ1304N	13000	2175	1840	390	□150	Φ420×180	10-M22×1.5 ISO	Φ335	Φ281	HM518445/10	7.50V-20
HQ1306N	13000	2175	1840	348	Φ127	Φ420×220	10-M22×1.5 ISO	Φ335	Φ281	HM518445/10	7.50V-20
HQ1601N	16000	2190	1850	350	□150	Φ420×220	10-M22×1.5 ISO	Φ335	Φ281	HM518445/10 HM220149/10	8.00V-20
