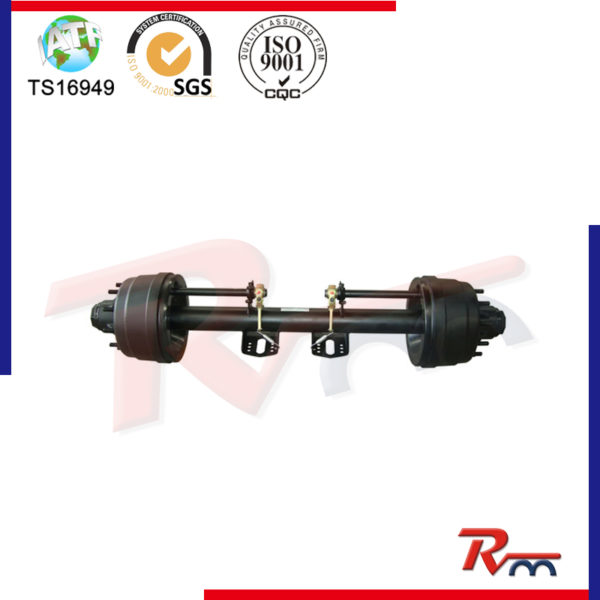

American Outboard Type Axle for Truck & Trailer

RM No.: HQ1301N, HQ1302N, HQ1303N, HQ1305N, HQ1309N

American Outboard Type

Description

Product Description

RM#	Max Capacity (Kg)	Total Length (L1)	Track Length (L2)	Brake chamber distance (L3)	Axle Tube	Brake	Wheel Fixing			Bearing	Recommended Wheel
RM#	Max Capacity (Kg)	Total Length (L1)	Track Length (L2)	Brake chamber distance (L3)	Axle Tube	Brake	Stud	P.C.D	H	Bearing	Recommended Wheel
HQ1301W	13000	2175	1840	390	□150	Φ420×180	8-M20×1.5 JIS	Φ285	Φ221	HM518445/10	7.50V-20
HQ1302W	13000	2175	1850	365	Φ127	Φ420×180	10-M22×1.5 ISO	Φ285.75	Φ221	HM518445/10	7.50V-20
HQ1303W	13000	2175	1840	390	□150	Φ420×180	10-M22×1.5 ISO	Φ335	Φ281	HM518445/10	7.50V-20
HQ1305W	13000	2175	1840	390	Φ127	Φ420×180	10-M22×1.5 ISO	Φ335	Φ281	HM518445/10	7.50V-20
HQ1309W	13000	2151	1820	370	Φ127	Φ420×180	10-7/8″BSF	Φ335	Φ281	HM518445/10	7.50V-20
