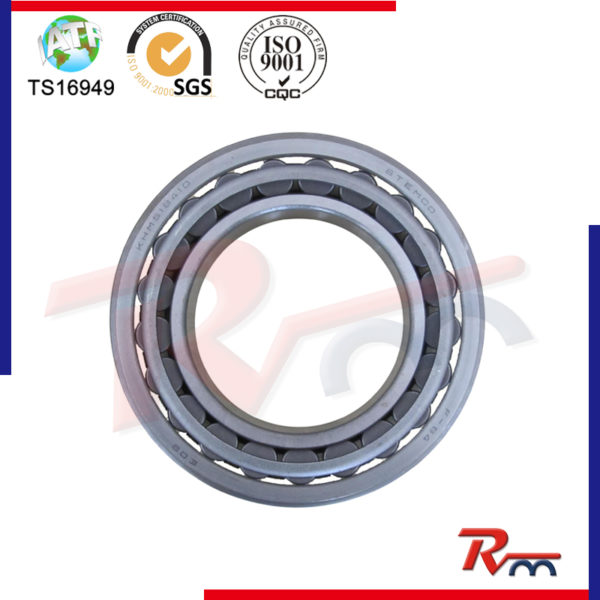

Axle Bearing for Truck & Trailer
RM No.: ZC Series
- Description
Product Description
RM# | Replaces | Specifications | Weight (kg) | ||
Inner Dia. d (mm) | Outter Dia. D (mm) | Assembly Height T (mm) | |||
ZC0101 | 32222 | 110 | 200 | 56.00 | 7.430 |
ZC0118 | 32314 | 70 | 150 | 54.00 | 4.350 |
ZC0132 | 33118 | 90 | 150 | 45.00 | 3.220 |
ZC0139 | 33213 | 65 | 120 | 41.00 | 2.050 |
ZC0140 | 33215 | 75 | 130 | 41.00 | 2.140 |
ZC0302 | HM212049/11 | 66.675 | 122.238 | 38.100 | 1.840 |
ZC0304 | HM218248/10 | 89.974 | 146.975 | 40.000 | 2.360 |
ZC0305 | HM220149/10 | 99.974 | 156.975 | 42.000 | 2.750 |
ZC0307 | HM516449/10 | 82.550 | 133.350 | 39.688 | 2.120 |
ZC0308 | HM518445/10 | 88.900 | 152.400 | 39.688 | 2.886 |
ZC0185 | 28985/20 | 60.325 | 101.600 | 25.400 | 0.790 |
ZC0189 | 29586/20 | 63.500 | 107.950 | 25.400 | 0.920 |
ZC0216 | 368A/362A | 50.800 | 88.900 | 20.638 | 0.500 |
ZC0237 | 39590/20 | 66.675 | 112.712 | 30.162 | 1.130 |
ZC0240 | 3982/20 | 63.500 | 112.712 | 30.162 | 1.220 |
ZC0248 | 45280/20 | 44.450 | 104.775 | 30.162 | 1.33 |
ZC0255 | 47679/20 | 76.200 | 133.350 | 33.380 | 1.900 |
ZC0256 | 47686/20 | 82.550 | 133.350 | 33.338 | 1.690 |
ZC0267 | 555S/552A | 57.150 | 123.825 | 38.100 | 2.170 |
ZC0271 | 575/572 | 76.200 | 139.992 | 36.512 | 2.370 |
ZC0274 | 580/572 | 82.550 | 139.992 | 36.512 | 2.140 |
ZC0279 | 594A/592A | 95.250 | 152.400 | 39.688 | 2.470 |
ZC0282 | 598A/592A | 92.075 | 152.400 | 39.688 | 2.570 |
ZC0285 | 6461A/6420 | 76.200 | 149.225 | 53.975 | 4.150 |
ZC0293 | 740/742 | 80.962 | 150.089 | 44.450 | 3.390 |
ZC0298 | 759/752 | 88.900 | 161.925 | 47.625 | 4.060 |
