Bogie Suspension for Truck & Trailer
RM NO.: DDPJ115
- Description
Product Description

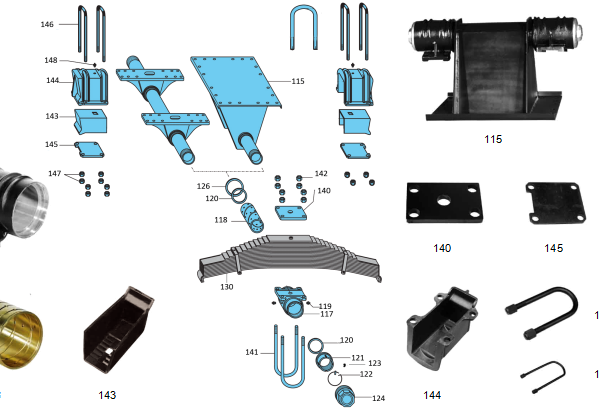

| RM# | Item No. | Description | Per unit | |
| Item | OEM NO. | |||
| DDPJ115 | 115 | TRUNNION AXLE ASSEMBLY | 09.374.17.14.0 | 1 |
| DDPJ117 | 117 | TRUNNION BLOCK | 03.224.19.03.1 | 2 |
| DDPJ118 | 118 | BUSH | 03.112.99.04.0 | 2 |
| DDPJ119 | 119 | GREASE NIPPLE | 02.6850.06.02 | 4 |
| DDPJ120 | 120 | RING | 03.310.39.02.0 | 4 |
| DDPJ121 | 121 | NUT | 03.264.19.03.0 | 2 |
| DDPJ122 | 122 | LOCKING RING | 03.188.07.04.0 | 2 |
| DDPJ123 | 123 | PIN | 03.084.72.01.0 | 2 |
| DDPJ124 | 124 | HUB CAP | 03.212.27.01.0 | 2 |
| DDPJ126 | 126 | RING | 03.310.89.08.0 | 2 |
| DDPJ130 | 130 | LEAF SPRING | 05.081.08.07.0 | 2 |
| DDPJ140 | 140 | PLATE | 03.280.97.06.0 | 2 |
| DDPJ141 | 141 | U-BOLT | 03.138.61.07.0 | 4 |
| DDPJ142 | 142 | HEXAGON NUT | 02.5202.44.80 | 16 |
| DDPJ143 | 143 | SPRING CUSHION | 03.140.16.01.0 | 4 |
| DDPJ144 | 144 | SPRING HOUSING | 03.146.06.05.0 | 4 |
| DDPJ145 | 145 | PLATE | 03.285.76.01.0 | 4 |
| DDPJ146 | 146 | U-BOLT | 03.138.42.01.0 | 8 |
| DDPJ147 | 147 | HEXAGON NUT | 02.5202.30.80 | 32 |
| DDPJ148 | 148 | GREASE NIPPLE | 02.6850.06.02 | 4 |
