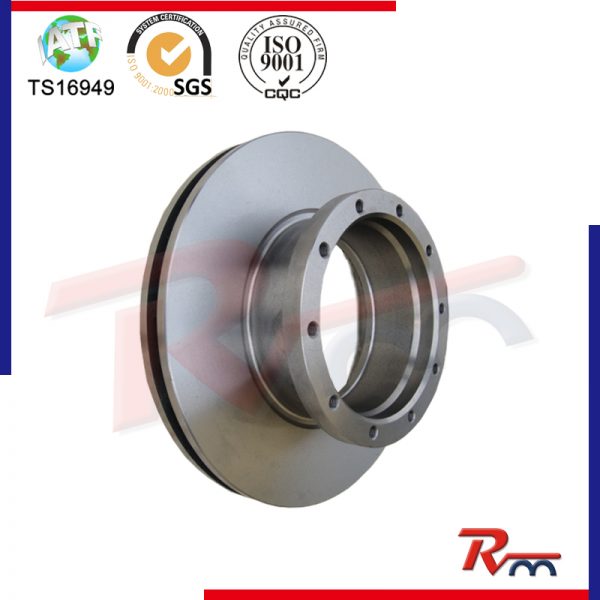

Brake Disc for Truck and Trailer

RM NO : SCP0301

Description

Product Description

RM#	Replaces	Description
		Brake size	Brake surface thickness	Hub location Diam	Depth	Bolt circle	Bolt hole
		A	B	C	D	E	No.	Dia.
BPW Series
SCP0101	03 088 34 03 0	Φ377	45	Φ230	160	Φ275	8	Φ23
SCP0102	03 088 34 10 0	Φ377	45	Φ292	160	Φ335	10	Φ23
SCP0103	03 088 34 02 0	Φ377	45	Φ290	160	Φ335	10	Φ23
SCP0104/05	03 088 35 01 0 03 088 35 03 0 03 088 35 05 0	Φ430	45	Φ290	160	Φ335	10	Φ23
SCP0106	03 088 34 08 0	Φ377	45	Φ290	160	Φ335	10	Φ23
SCP0107	03 088 34 01 0	Φ377	45	Φ230	160	Φ275	10	Φ23
SCP0108	03 088 34 06 0	Φ377	45	Φ290	160	Φ335	10	Φ23
SCP0109	03 088 34 04 0	Φ377	45	Φ290	160	Φ319	10	Φ23
SAF Series
SCP0201	4079000701	Φ375	45	Φ131	140	Φ165	12	Φ19
SCP0202	4079000400	Φ377	45	Φ169	158	Φ275	8	Φ23
SCP0203	4079000500	Φ430	45	Φ131	130	Φ168	12	Φ19
SCP0204	4079000300	Φ430	45	Φ190	160.5	Φ335	10	Φ22.75
SCP0205	4079001300	Φ430	45	Φ170.5	47.5	Φ190	10	Φ13.5
Mercedes Benz Series
SCP0301	942 421 1112	Φ430	45	Φ211	132	Φ238	10	M14x1.5
SCP0302	975 421 0012	Φ377	45	Φ106	134	Φ138	14	Φ14.5
SCP0303	975 423 0012	Φ377	45	Φ176	138	Φ201	8	M14x1.5
SCP0304	356 421 1012	Φ438	45	Φ195	135	Φ335	10	M14x1.5
SCP0305	942 421 2112	Φ438	45	Φ195	135	Φ335	10	M14x1.5
SCP0306	902 421 0312	Φ276	22	Φ85	77	Φ130	5	Φ15
MAN Series
SCP0401	81 50803 0042	Φ432	34	90	93	Φ122	10	M8x1.5
SCP0402	81 50803 0022	Φ330	34	157	124	Φ180	12	M22x1.5
SCP0403	81 50803 0021	Φ432	45	208	135	Φ235	10	M16x1.5
SCP0404	81 50803 0028	Φ432	45	208	135	Φ235	10	M16x1.5
SCP0405	81 50803 0031	Φ432	45	131	130	Φ168	12	Φ19
SCP0406	81 50803 0009	Φ438	45	200	135	Φ235	10	M16x1.5
SCP0407	81 50803 0010	Φ324	30	135	102	Φ158	10	M14x1.5
SCP0408	81 50803 0026	Φ330	34	135	104	Φ158	10	M14x1.5
DAF Series
SCP0501	1387439	Φ432	45	258	45	–	–	–
Scania Series
SCP0601	1402272 / 1386686 / 1852817	Φ430	45	208	131	Φ237	10	M16x1.5
ROR Series
SCP0701	21225115	Φ378	45	222	150	Φ250	10	M16x2
SCP0702	21224263	Φ378	45	225	150	Φ275	8	Φ24.25
Volvo Series
SCP0801	85103803 / 3092710	–	–	–	–	–	–	–
SCP0802	85103804	–	–	–	–	–	–	–
