Fuel Water Separator for Truck & Trailer

RM No.: YYFL082, YYFL063, YYFL071, YYFL072

REP: RACOR

Product Description

RM#	Replace	Description

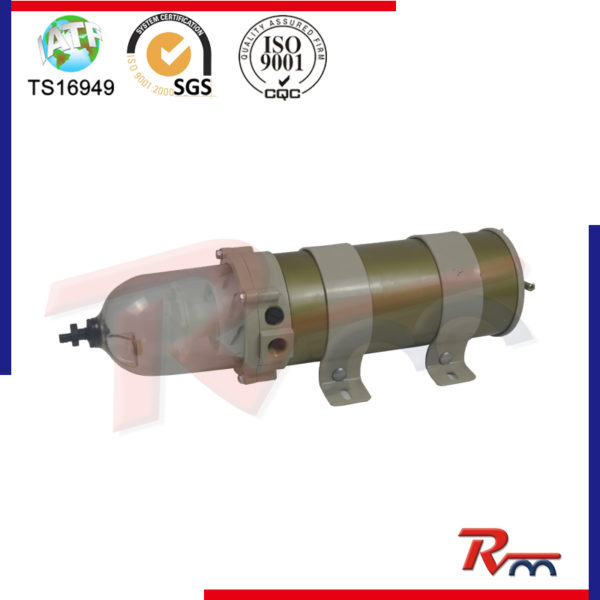

YYFL082	DUAL 1000FG	DUAL 1000FG, 75/1000FHX MAXIMUM, FLOW RATE:180/360 GPH (681/1363LPH), HEIGHT: 22″/559MM DEPTH:18.75″/476MM, WIDTH:11″/279MM, WEIGHT:13.6KG PORT SIZE:7/8″-14UNF1, FILTER 2020 INITIAL RESISTANCE:3.70 PSI/25.5KPA MAXIMUM WORKING PRESSURE:15PSI/103KPA CROWN MAINTENANCE SPACE:10″/254MM

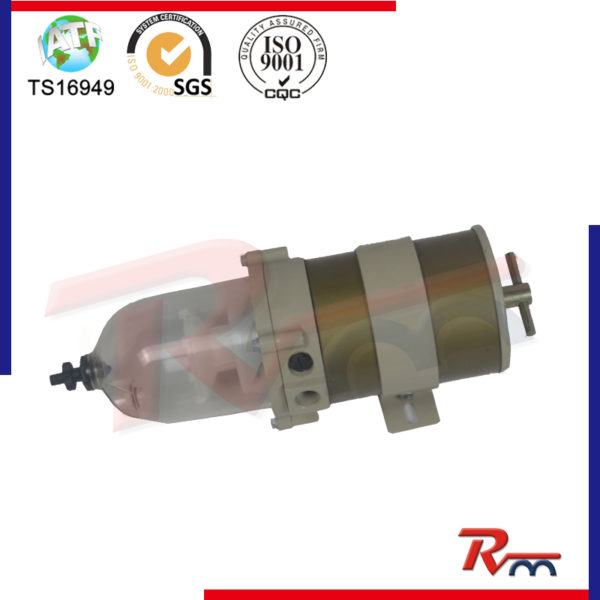

YYFL072	1000FG	SINGLE 1000FG, MAXIMUM FLOW RATE:180GPH / 681LPH, HEIGHT: 22″/559MM, DEPTH: 7″/178MM WIDTH:6″/152MM, WEIGHT:5KG PORT SIZE:7/8″-14UNF1, FILTER 2020 INITIAL RESISTANCE:1 PSI/3.4KPA MAXIMUM WORKING PRESSURE:15PSI/103KPA CROWN MAINTENANCE SPACE:10″/254MM
YYFL071	900FG	SINGLE 900FG, MAXIMUM FLOW RATE: 90GPH / 341LPH, HEIGHT: 17″/432MM, DEPTH: 7″/178MM WIDTH:6″/153MM WEIGHT:3KG PORT SIZE:7/8″-14UNF1, FILTER 2040 INITIAL RESISTANCE:0.7 PSI/2.4KPA MAXIMUM WORKING PRESSURE:15PSI/103KPA CROWN MAINTENANCE SPACE:5″/127MM

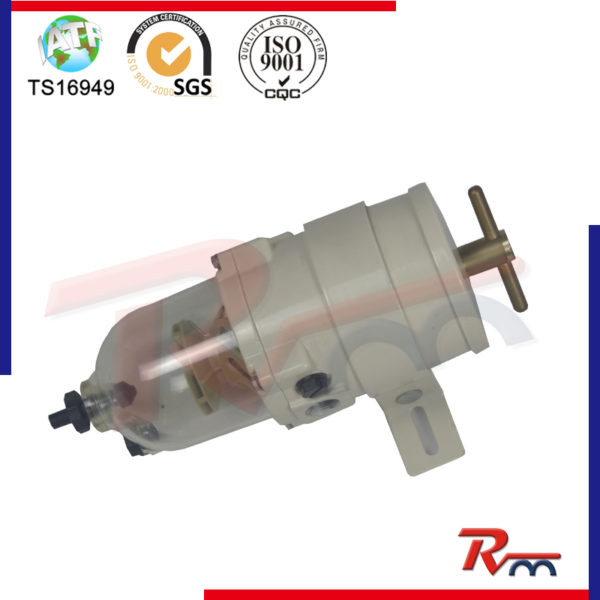

YYFL063	500FG	SINGLE 500FG, MAXIMUM FLOW RATE: 60GPH / 227LPH, HEIGHT: 13″/330MM, DEPTH: 6″/152MM WIDTH:6″/152MM WEIGHT:2KG PORT SIZE:9/16″-18UNF, FILTER 2010 INITIAL RESISTANCE:1.25 PSI/4.23KPA MAXIMUM WORKING PRESSURE:15PSI/103KPA CROWN MAINTENANCE SPACE:4″/102MM
