Steel Wheel for Truck & Trailer

RM NO.: RM225-825103

Description

Product Description

Tube wheel									Unit:mm
Wheel size	RM#	Bolt hole			P.C.D	Center Bore Dia.	Offset	Disc thickness	Rec. tyre
5.50F-15	RM550F-15101	5	29	SR22	203.2	146	108	8	7.00-15 7.00R15
	RM550F-15102	6	17.5	60°	170	133	25	6
	RM550F-15103	6	18.5	60°	180	140	47	6
	RM550F-15104	6	15	SR18	140	93.5	35	4
	RM550F-15105	6	15	SR18	140	93.5	30	4
	RM550F-15106	6	17.5	SR18	140	95	31	6

5.50F-16	RM550F-16101	5	32.5	SR22	208	150	115	10	6.5/7.00/ 7.5R16
	RM550F-16102	6	17.5	SR22	170	133.3	30	6
	RM550F-16103	6	32	SR22	222.25	163	127	10
	RM550F-16104	6	20.5	SR22	190	140	108	10

6.00G-16	RM600G-16101	6	32	SR22	222.25	163	135	10	7.50R16
	RM600G-16102	6	20.5	SR22	190	140	121	10
	RM600G-16103	5	32.5	SR22	208	150	127	10

6.5-16	RM650-16101	6	32	SR22	203.2	140	31	6	7.50/8.25R16
	RM650-16102	6	20.5	SR22	190	140	90	10
	RM650-16103	6	32	SR22	222.25	163	145	10

6.5-20	RM650-20101	6	32.5	SR22	222.25	163	145	12	7.50R20
6.5-20	RM650-20102	8	32.5	SR22	275	214	145	10	7.50R20

7.00T-20	RM700T-20101	8	32	SR22	275	214	140	10	9.00-20 9.00R20
	RM700T-20102	8	32	SR22	275	214	140	12
	RM700T-20103	8	32	SR22	275	214	158	12
	RM700T-20104	8	32.5	SR22	285	222	162	12
	RM700T-20105	10	26		335	281	162	12
	RM700T-20106	10	27	SR18	335	281	162	12

7.50V-20	RM750V-20101	8	32.5	SR22	285	222	165	14	10.00-20 10.00R20
	RM750V-20102	8	32.5	SR22	275	214	160	14
	RM750V-20103	10	32.5	SR22	285.75	222	165	14
	RM750V-20104	10	26		285.75	221	165	14
	RM750V-20105	10	27	SR18	335	281	165	14

8.00V-20	RM800V-20101	8	32.5	SR22	275	214	175	14	11.00-20 11.00R20
	RM800V-20102	8	32.5	SR22	285	222	175	14
	RM800V-20103	10	32.5	SR22	285.75	222	175	14
	RM800V-20104	10	26		285.75	221	175	14
	RM800V-20105	10	26		335	281	175	14
	RM800V-20106	10	27	SR18	335	281	175	14

8.5-20	RM850-20101	8	32.5	SR22	285	222	175	14	12.00-20 12.00R20
	RM850-20102	10	32.5	SR22	285.75	222	175	14
	RM850-20103	10	26		285.75	221	175	14
	RM850-20104	10	26		335	281	175	14
	RM850-20105	10	27	SR18	335	281	175	14

8.5-24	RM85-24101	10	27	SR18	335	281	175	14	12.00-24 12.00R24
8.5-24	RM85-24102	10	27	SR18	335	281	180	14	12.00-24 12.00R24

17.5×6.00	RM175-600101	6	32.5	SR18	222.25	164	135	10	9.5R17.5
17.5×6.00	RM175-600102	6	32.5	SR18	222.25	164	135	12	9.5R17.5

19.5×6.75	RM195-675101	6	32.5	SR22	222.25	164	145	12	9R19.5
19.5×6.75	RM195-675102	8	25.4	SR22	275	214	145	12	9R19.5

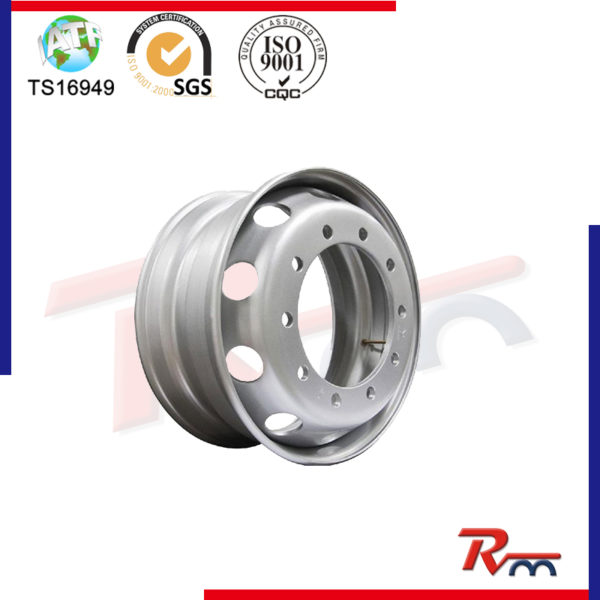

Steel wheel
Tubeless wheel									Unit:mm
Wheel size	RM#	Bolt hole			P.C.D	Center Bore Dia.	Offset	Disc thickness	Rec. tyre
22.5×6.75	RM225-675101	8	32.5	SR22	275	214	152	14	9R22.5
	RM225-675102	8	32.5	SR22	285	221	162	14
	RM225-675103	10	26		335	281	165	14

22.5×7.50	RM225-750101	8	32.5	SR22	275	214	152	14	10R22.5
	RM225-750102	8	32.5	SR22	285	222	165	14
	RM225-750103	10	32.5	SR22	285.75	222	165	14
	RM225-750104	10	26		335	281	165	14

22.5×8.25	RM225-825101	8	32.5	SR22	275	214	165	14	11R22.5
	RM225-825102	8	32.5	SR22	285	221	165	14
	RM225-825103	10	32.5	SR22	285.75	221	175	14
	RM225-825104	10	26		285.75	221	165	14
	RM225-825105	10	26		335	281	165	14
	RM225-825106	10	27	SR18	335	281	165	14

22.5×9.00	RM225-900101	10	26		335	281	175	14	12R22.5 315/85R22.5
	RM225-900102	10	27	SR18	335	281	175	14
	RM225-900103	10	26		285.75	221	175	14

22.5×11.75	RM225-1175101	10	26		335	281	0	14	385/85R22.5
22.5×11.75	RM225-1175102	10	27	SR18	335	281	0	14	385/85R22.5

24.5×8.25	RM245-825101	10	26	SR22	285.75	220	168	11	12R24.5
	RM245-825001	10	32	SR22	285.75	222	168	11
	RM245-825002	10	26		285.75	220	168	11
