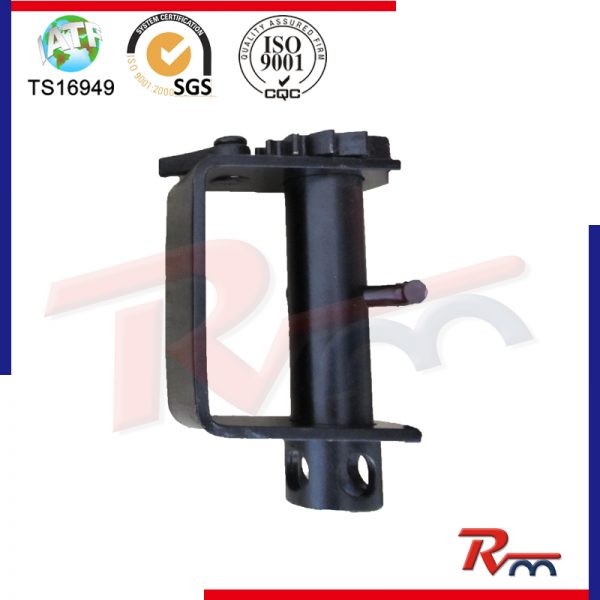

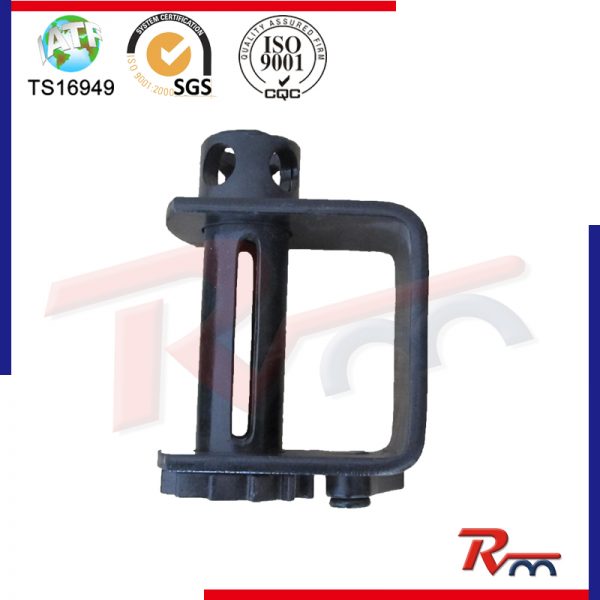

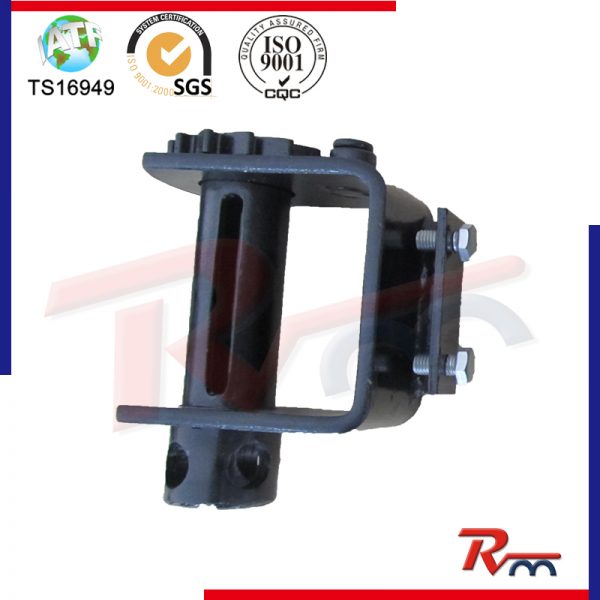

Webbing Winch for Truck & Trailer
RM No.: JJQ
- Description
Product Description
| RM# | Model | Webbing | Working Load Limit (kgs) | Diamension (inch) | ||||
| Webbing Length(feet) | Breaking strength(kgs) | A | B | C | D | |||
| Weld-on Winch | ||||||||
| JJQ1001W | Standard Weld-On Part No. 1820 | 20′ ~ 27′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 5.51″ | 3.54″ |
| JJQ1002W | Storable Weld-On | 30′ ~ 40′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 6.30″ | 3.54″ |
| JJQ1003W | Low Profile Weld-On Webbing Winch | 10′ ~ 12′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 4.33″ | 3.94″ |
| JJQ1004W | Deep Storable Weld-On | 30′ ~ 40′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 7.48″ | 3.54″ |
| JJQ1005W | Standard Weld-On Cable Winch with 1/2″ hole for cable attachement | 40′ ~ 50′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 5.51″ | 3.54″ |
| JJQ1006W | Standard Weld-On Cable Winch with post | 20′ ~ 27′ | 4,535 | 1,515 | 7.75″ | 4.88″ | 5.51″ | 3.54″ |
| Portable Webbing Winch | ||||||||
| JJQ2001P | Standard Portable Webbing Winch Part No. 1820P2 | 20′ ~ 27′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 5.51″ | 3.54″ |
| JJQ2002P | Storable Portable Webbing Winch | 30′ ~ 40′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 6.30″ | 3.54″ |
| JJQ2003P | Deep Storable Portable Winch | 40′ ~ 50′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 7.48″ | 3.54″ |
| JJQ2004P | Low Profile Portable Winch | 10′ ~ 12′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 4.33″ | 3.94″ |
| Sliding Webbing Winches | ||||||||
| JJQ3001S | Standard Sliding Webbing Winch | 20′ ~ 27′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 6.69″ | 3.94″ |
| JJQ3002S | Storable High Profile Sliding Webbing Winch | 30′ ~ 40′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 7.48″ | 3.94″ |
| JJQ3003S | Low Profile Sliding Webbing Winch | 10′ ~ 12′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 5.51″ | 3.94″ |
| Double L Sliding Webbing Winch | ||||||||
| JJQ5001D | Standard Double L Sliding Webbing Winch | 20′ ~ 27′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 5.87″ | 3.94″ |
| JJQ5002D | Storable Double L Sliding Webbing Winch | 30′ ~40′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 6.69″ | 3.94″ |
| JJQ5003D | Low Profile Double L Sliding Webbing Winch | 10′ ~ 12′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 5.24″ | 3.94″ |
| Combination Winches | ||||||||
| JJQ4001C | Standard Combination Weld-On Winch | 20′ ~ 27′ | 7,500 | 2,500 | 9.65″ | 6.46″ | 5.51″ | 3.54″ |
| JJQ4002C | Standard Combination Double L Sliding Winch | 20′ ~ 27′ | 7,500 | 2,500 | 9.65″ | 6.46″ | 5.87″ | 3.94″ |
| JJQ4003C | Low Profile Combination Weld-On Winch | 10′ ~ 12′ | 7,500 | 2,500 | 9.65″ | 6.46″ | 4.33″ | 3.94″ |
| JJQ4004C | Low Profile Combination Portable | 10′ ~ 12′ | 7,500 | 2,500 | 9.65″ | 6.46″ | 4.33″ | 3.94″ |
| JJQ4005C | Standard Combination Portable Winch | 20′ ~ 27′ | 7,500 | 2,500 | 9.65″ | 6.46″ | 5.51″ | 3.54″ |
| JJQ4006C | Standard Combination Sliding Winch | 20′ ~ 27′ | 7,500 | 2,500 | 9.65″ | 6.46″ | 6.69″ | 3.94″ |
| 3 Bar Webbing Winches | ||||||||
| JJQ6001B | Standard 3 Bar Weld-On Webbing Winch | 20′ ~ 27′ | 6,820 | 2,275 | 9.84″ | 6.46″ | 5.51″ | 3.54″ |
| JJQ6002B | Standard 3 Bar Double L Sliding Winch | 20′ ~ 27′ | 6,820 | 2,275 | 9.84″ | 6.46″ | 5.87″ | 3.94″ |
| JJQ6003B | Standard 3 Bar Sliding Winch | 20′ ~ 27′ | 6,820 | 2,275 | 9.84″ | 6.46″ | 6.69″ | 3.94″ |
| JJQ6004B | Low Profile 3 Bar Weld-On Webbing Winch | 10′ ~ 12′ | 6,820 | 2,275 | 9.84″ | 6.46″ | 4.33″ | 3.54″ |
| JJQ6005B | Low Profile 3 Bar Double L Sliding Winch | 10′ ~ 12′ | 6,820 | 2,275 | 9.84″ | 6.46″ | 5.24″ | 3.94″ |
| Leg Bracket Webbing Winch | ||||||||
| JJQ7001L | Standard Leg Bracket Webbing Winch | 20′ ~ 27′ | 7,500 | 2,500 | 7.75″ | 4.88″ | 4 15/16″ | 3.75″ |
| JJQ7002L | Low Profile Leg Bracket Webbing Winch | 10′ ~12′ | 7,500 | 2,500 | 7.75″ | 4.72″ | 3.54″ | 4.88″ |
| JJQ7003L | Low Profile Leg Bracket Combination Winch | 10′ ~ 12′ | 7,500 | 2,500 | 9.65″ | 6.30″ | 3.54″ | 4.88″ |
| End-Box Cable Winch | ||||||||
| JJQ8001E | With 5/8″ diameter and 2″ long post | 20′ ~ 27′ | 4,535 | 1,515 | 7.44″ | 7.40″ | 10″ | 3.94″ |
